产品介绍
|
自动装卸灯塔技术规格书 |
|||
|
Technical specification for self-handling lighthouses |
|||
|
|
|
||
|
|
额定电压 Rated voltage |
AC220V |
|
|
|
IP 等 级 IP level |
IP65(整机)/IP65(Complete machine) |
|
|
|
工作时间 Working hours |
一次性注满油料 Fill up with oil at one time |
25小时 25 hours |
|
|
|
市电 mains |
长时间 For a long time |
|
|
光源灯头 Lamp holder |
光源类型 Light source type |
LED+金卤灯 LED+ gold halide lamp |
|
|
|
功率 power |
2*320W+2*1000W |
|
|
|
光通量 Luminous flux |
2*44800+2*110000lm |
|
|
|
灯泡寿命 Bulb life |
100000H |
|
|
|
色温Temperature |
6000K白光white light |
|
|
|
防护等级 Class of protection |
IP65 |
|
|
灯杆控制 Light pole control |
水平旋转 Horizontal rotation |
360°(手动) 360°(manual) |
|
|
|
仰府旋转 Reverse rotation |
90°(电动) 90°(electric) |
|
|
|
升降高度/节数 Lifting height/number of knots |
7.5m |
|
|
|
升降方式 Lifting mode |
气动升降 Pneumatic lifting |
|
|
|
升降设备 Lifting equipment |
小型空压机 Small air compressor |
|
|
|
材料 Materials |
铝型材 Aluminium profile |
|
|

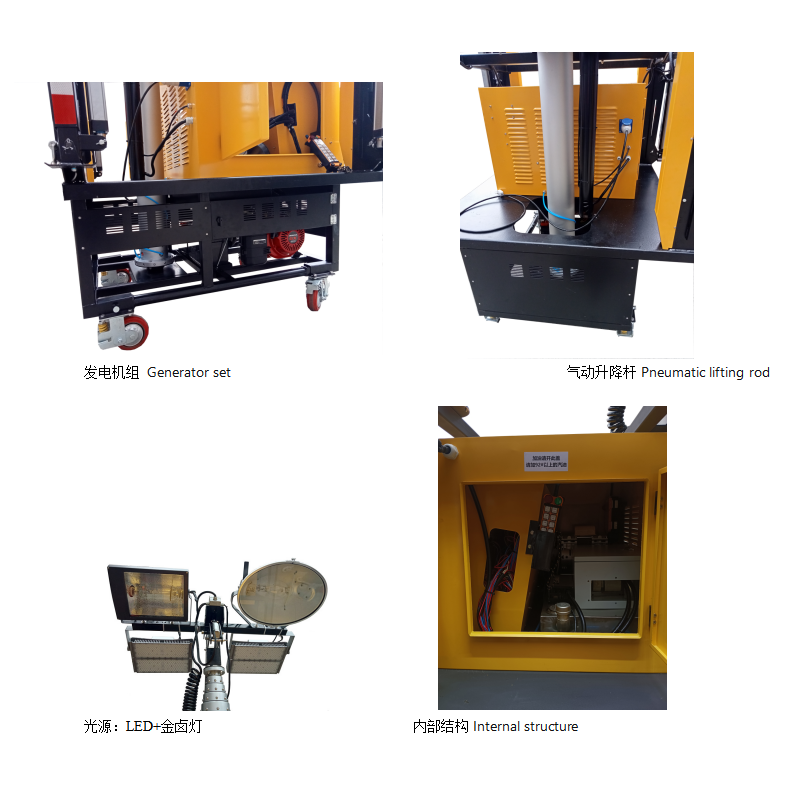

发电机组 Generator set |
发电机组 Generator set |
本田Honda |
|
|
|
燃油类型 Fuel type |
汽油 gasoline |
|
|
|
输出电压 Output voltage |
220V |
|
|
|
冷却方式 Cooling mode |
四冲程风冷 Four stroke air cooling |
|
|
|
启动方式 Starting mode |
手气动+电启动 Manual pneumatic + electric start |
|
|
|
燃油消耗 Fuel consumption
|
1.7 L/h |
|
|
|
油箱容量 Tank capacity |
43L |
|
|
|
电机输出电压 Motor output voltage |
AC220V/50HZ |
|
|
|
额定输出功率 Rated output power |
5KW |
|
|
|
排量 displacement |
389CC |
|
|
|
发电机型式Generator type |
开架式 Open shelf |
|
|
支腿outrigger |
4个收缩支撑脚 4 retraction support feet |
|
|
|
总重量 Gross weight |
小于600KG Less than 600KG |
|
|
|
护栏灯功率 Guardrail lamp power |
2*28W |
|
|
|
机构+音频输出（选配） 辅灯照明（选配） Mechanism + Audio output (optional) Auxiliary lighting (optional)
|
||
